三洋電機SANYO DENKI 2-Phase Stepping Motors 106mm系列

General specifications

Dielectric strength:1000VAC

Insulation resistance:100MΩ(500VDC)
Insulation type:B type
Allowable radial load:360N
Allowable thrust load:100N
The load poin is 1/3from the axis end.

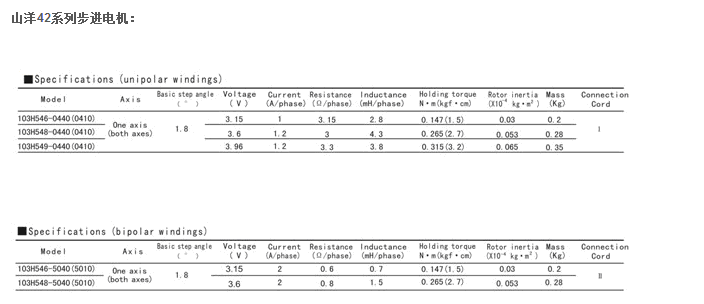

三洋電機SANYO DENKI 2-Phase Stepping Motors 42mm系列
General specifications
Dielectric strength:500VAC
Insulation type:B type
Allowable radial load:28N
Allowable thrust load:10N
The load point is 1/3from the axis end.

三洋電機SANYO DENKI 2-Phase Stepping Motors 56mm系列

General specifications
Dielectric strength:1000VAC
Insulation resistance:100MΩ500VDC)
Insulation type:B type
Allowable radial load:75N
Allowable thrust load:15N
*The load point is 1/3from the axis end.

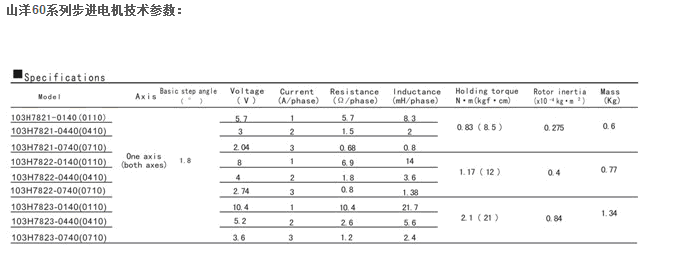

三洋電機SANYO DENKI 2-Phase Stepping Motors 60mm系列
General specifications
Dielectric strength:1000VAC
Insulation resistance:100MΩ(500VDC)
Insulation type:B type
Allowable radial load:80N
Allowable thrust load:20N
The load point is 1/3 from the axis end.

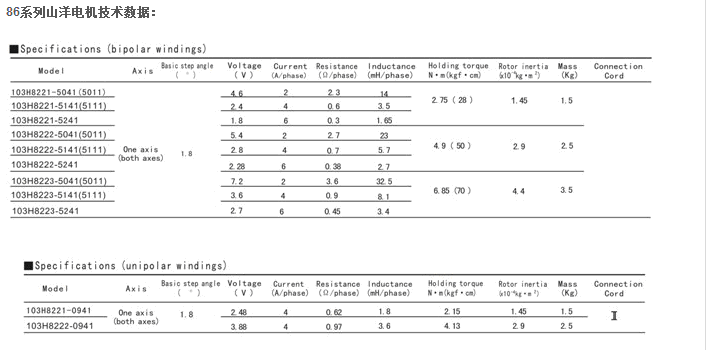

三洋電機SANYO DENKI 2-Phase Stepping Motors 86mm系列
General specifications
Dielectric strength:1000VAC
Insulation resistance:100MΩ(500VDC)
Insulation type:B type
Allowable radial load:220N
Allowable thrust load:60N
The load point is 1/3 from the axis end.
